Arc flash is a violent release of electrical energy caused by a fault in energized equipment. The burst of heat, light, pressure and molten metal it produces can cause burns in a fraction of a second. A sign that specifically names arc flash tells workers that this is not an electrical hazard; it is one of the most dangerous situations in an industrial workplace.

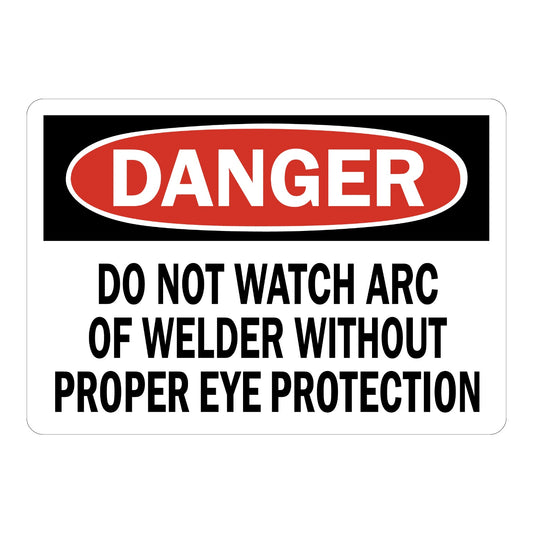

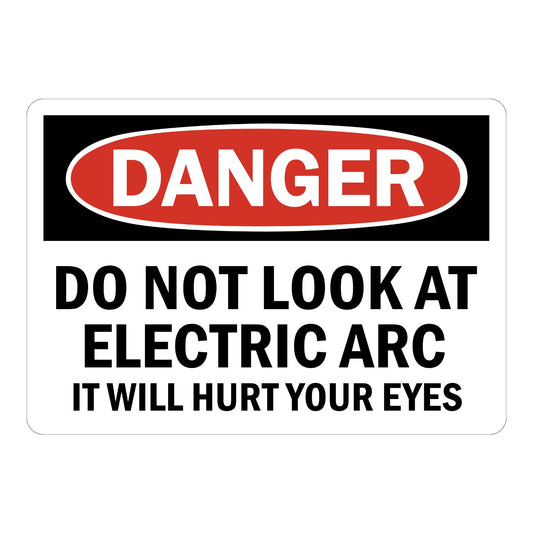

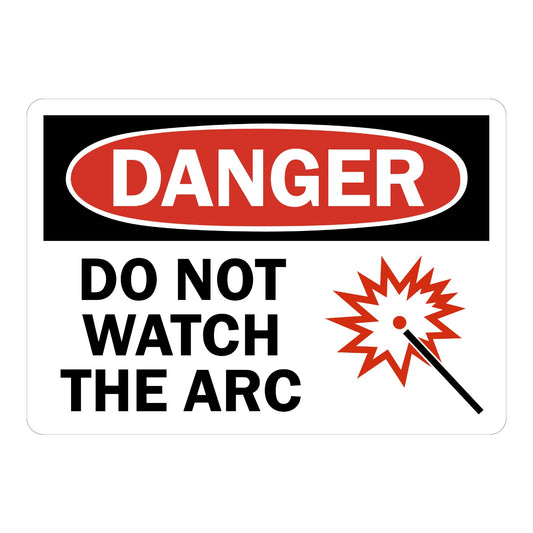

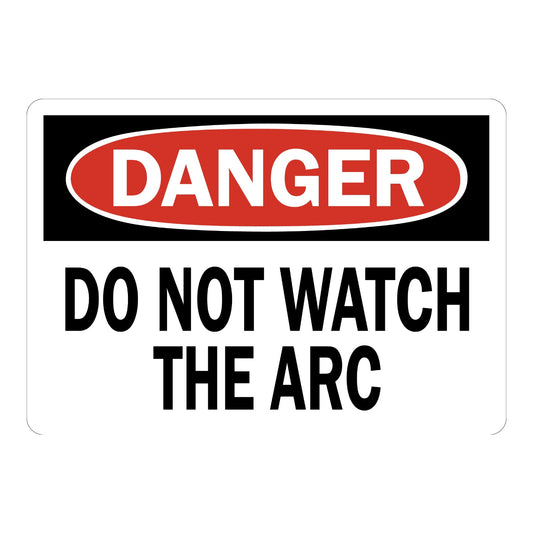

Arc flash is uncontrolled and explosive. A welding arc is a controlled arc used in welding operations. It still emits intense UV and infrared radiation that can cause arc eye, skin burns and long-term eye damage. Welding arc signs protect both the welder and anyone passing nearby who might accidentally look at the arc without eye protection.

On panels, switchgear, motor control centers, transformers and any energized equipment where an arc flash hazard has been identified. NFPA 70E recommends these labels be in place before any work is performed near parts.

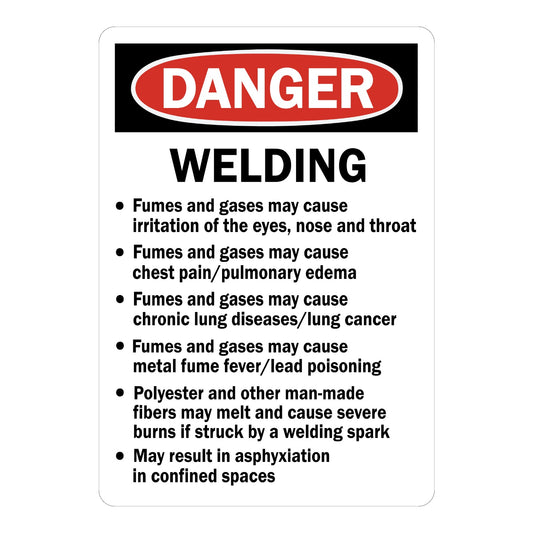

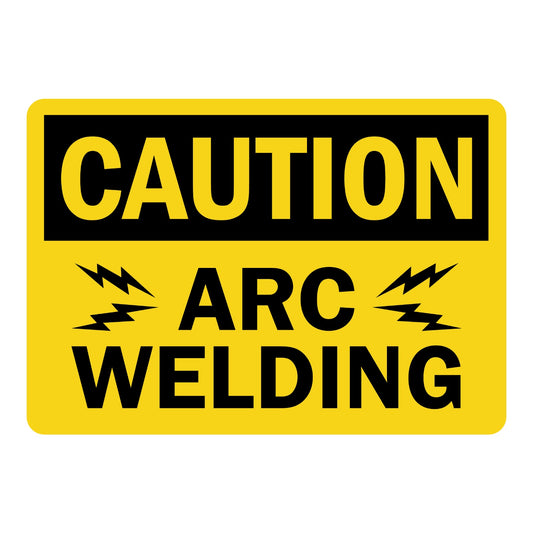

At welding bay entrances, on curtain and screen boundaries separating welding from other work areas, and anywhere welding is regularly performed near foot traffic. The sign needs to catch someone before they are in line of sight of the arc, not after they have already looked at it.

NFPA 70E is the primary reference for arc flash hazard identification, PPE selection, and equipment labeling. OSHA 29 CFR 1910.333 covers electrical safe work practices. For welding arc hazards, OSHA 29 CFR 1910.252 covers general welding and cutting safety. OSHA 29 CFR 1910.145 covers accident-prevention signs across both hazard types.

Equipment-level arc flash labels should include arc flash boundary, incident energy, working distance, and required PPE category per NFPA 70E. That detail comes from a formal arc flash study. Area-level signs communicate the general hazard and direct workers to follow safe work practices before approaching any energized equipment.

Yes. The waterproof vinyl holds up to the conditions typical in outdoor electrical installations and industrial fabrication shops, including temperature variation, moisture, and UV exposure.

The signs come in different sizes. Some common sizes for hazard signs are 3.5" x 5", 5" x 7", 7" x 10", 10" x 14" These sizes ensure that the signs are visible and easy to read. These signs need to be big enough to grab people's attention and small enough to fit in the space available.
